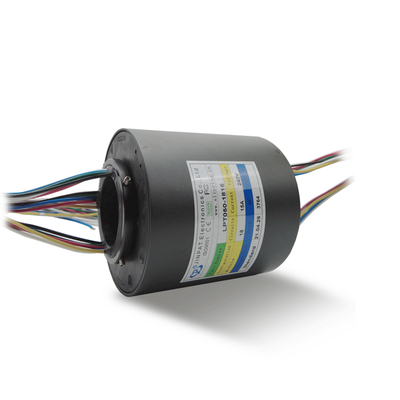

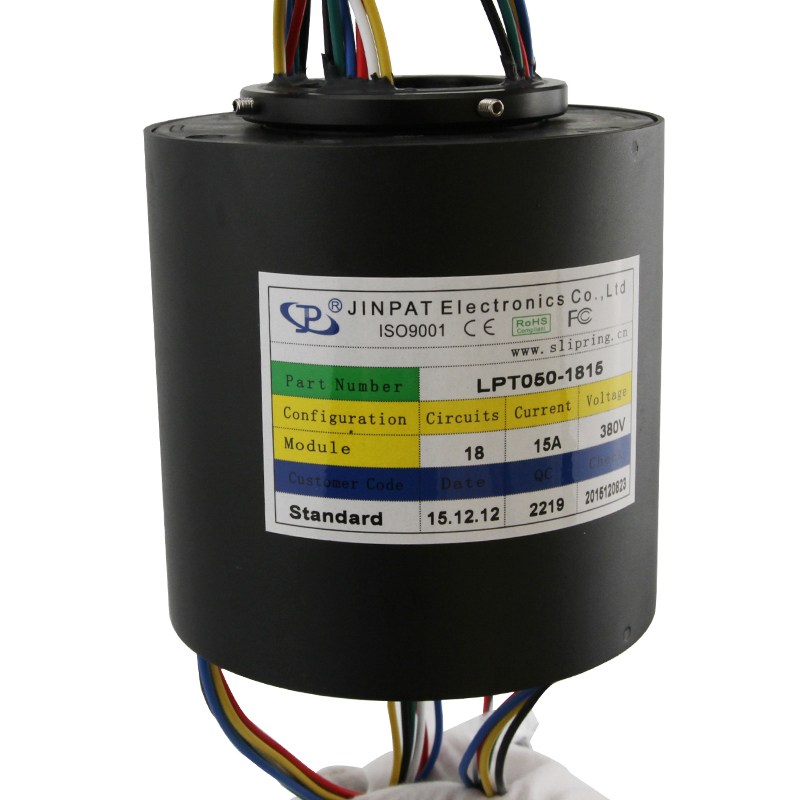

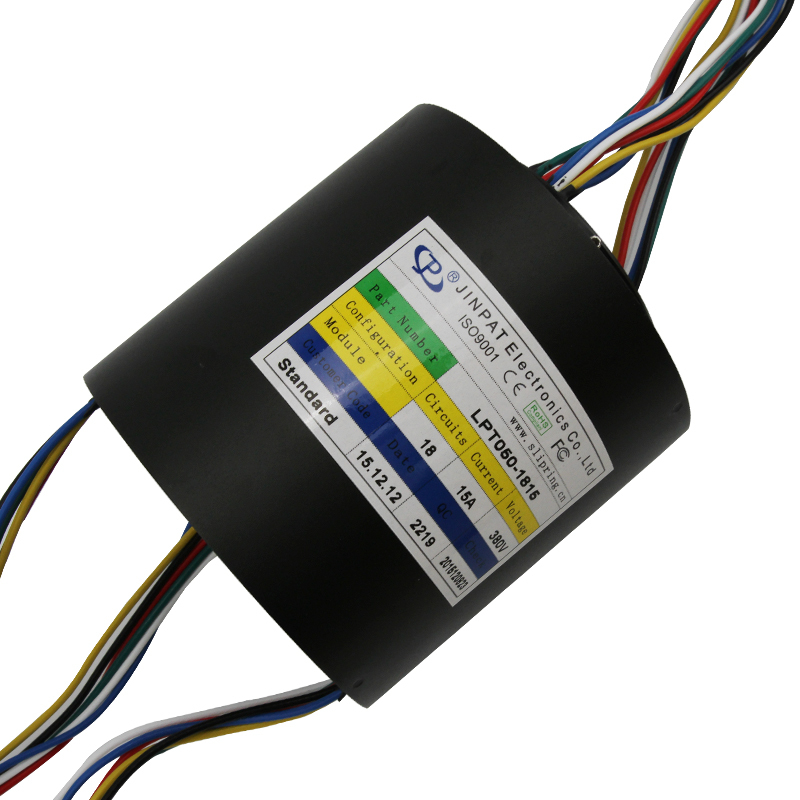

Through Hole Slip Ring 18 Circuit 15A 50mm Via Diameter

  • Through Hole Slip Ring 18 Circuit 15A 50mm Via Diameter
  • Through Hole Slip Ring 18 Circuit 15A 50mm Via Diameter
  • Through Hole Slip Ring 18 Circuit 15A 50mm Via Diameter
Place of Origin Guangdong, China
Фирменное наименование JINPAT
Model Number LPT050-1815
Minimum Order Quantity 1
Цена $170.20-205

Свяжитесь я бесплатно образцы и талоны.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Скайп: sales10@aixton.com

Если вы имеете любую заботу, то мы предусматриваем 24-часовую интерактивную справку.

x
Подробная информация о продукте
Via diameter 50mm Rotor diameter 300mm
Stator diameter 300mm Working speed 0~300rpm
Circuits 1-24 circuits Working temperature -20℃~ +60℃
Working humidity 60%RH or higher Voltage rating 240VAC/DC or higher
Current rating 2A/5A/10A/15A per circuit Dielectric strength ≥1000V@50Hz between each circuit
Insulation resistance 500MΩ@ 500VDC Electrical noise 30mΩ Min
Contact material Precious metal Lead wire length 300mm
Operating speed 0-300rpm
Выделить

18 circuit slip ring

,

15A through hole slip ring

,

50mm via diameter slip ring
Характер продукции
Through Hole Slip Ring 18 Circuit 15A, Crane Slip Ring Rotary Joint
Product Attributes
Attribute Value
Type Electronic Accessories
Via diameter 50mm
Rotor 300mm
Stator 300mm
Working speed 0~300rpm
Product Description

The LPT050-1815 hollow shaft slip ring features 18 circuits with 15A per circuit, specifically designed for crane applications. Utilizing advanced fiber brush technology, it offers multiple contact points per brush bundle with low contact force and minimal wear rates.

Key benefits include no lubrication requirements, virtually no wear debris production, and field-serviceable brush blocks.

Specifications
Parameter Value
Circuits 1-24 circuits
Operating Speed 0-300rpm
Working Temperature -20℃ to +60℃
Working Humidity 60%RH or higher
Voltage Rating 240VAC/DC or higher
Current Rating 2A/5A/10A/15A per circuit
Dielectric Strength ≥1000V@50Hz between circuits
Insulation Resistance 500MΩ@500VDC
Electrical Noise 30mΩ Min
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Key Features
  • Transfer analog and data signals
  • Compatible with data bus protocols
  • Long life, maintenance free operation
  • Easy installation process
  • 360° continuous rotation for power and data transmission
Typical Applications
  • Military and medical equipment
  • Wind power generation systems
  • Manufacturing and control equipment
  • Robotics and radar antenna systems
  • Construction and test equipment
  • Packaging machinery and rotary sensors
Customization Options
  • Inner/outer diameter and length
  • Working speed specifications
  • Number of circuits
  • Current and voltage ratings
  • Wire length and connection terminals
  • Housing material and color
  • Protection level requirements
  • Combined or separate power/signal transmission
Product Outline
Through Hole Slip Ring 18 Circuit 15A 50mm Via Diameter 0
Manufacturer Advantages
  • 12,000 square meter production facility with 500+ employees
  • National High and New Technology enterprise with 69 patents
  • Global partnerships with renowned enterprises
  • Over 10,000 successful designs across multiple industries
  • 20+ years of production and R&D experience since 1996
  • Free custom slip ring solutions for diverse equipment
  • Fast delivery times
Technical Support

Our engineering team provides comprehensive support for selecting the optimal slip ring solution based on your specific requirements including circuit count, voltage/current ratings, operating speed, and mounting configuration.
